FISHER & PAYKEL Integrated Triple Zone Freezer, 24", Ice - Panel Ready

Pair with the Integrated Triple Zone Refrigerator RS2474F3LJ1 for the ultimate kitchen solution - this model features three independent food zones, offering unparalleled cooling flexibility. With a capacity of 10.7 cu. ft., it includes ActiveSmart™ Foodcare, a stainless steel interior, a touch control panel, Sabbath mode, and an automatic ice maker. The integrated design fits flush with the cabinetry, providing a seamless look. This product is part of the luxury sub-category and premium sub-category series.

Highlights

• Three Independent Food Zones: The freezer zone temperature is adjustable from -6 to 7°F, while the top two compartments can be converted into Chill (29 to 32°F), Soft-Freeze (14 to 18°F), or Freezer (-6 to 7°F) zones to suit different types of food.

• Seamless Design: Fits flush with cabinetry, with only 3/16" gaps and no visible hinges or grilles. Customizable with your kitchen cabinetry and handles, or purchase our stainless steel door panel and handle options.

• Modular Flexibility: Mix and match different sizes and finishes, installing side by side or individually throughout the kitchen to create a customized cooling solution.

• Chill Mode: Keep meats, poultry, and fish as cool as possible without freezing, retaining vital freshness. Ideal for quickly chilling beverages for entertaining.

• ActiveSmart™ Foodcare: Learns your usage patterns and adjusts the temperature, airflow, and humidity to keep food fresher for longer.

• Easy Installation: Adjustable front and rear feet for uneven floors and customizable door panels to match your kitchen design.

• European Design Fit: Designed to slide into place as separate units, perfect for European-style kitchens.

• Intuitive Control Panel: Touch-sensitive control panel allows for easy temperature adjustments. The freezer door features a soft-close mechanism for added safety.

• Additional Features: 2 adjustable door shelves, Adjustable glass cantilevered shelves, SmartTouch control panel, Wi-Fi connectivity, Automatic ice maker, Bottle chill function, Door alarm, Fast freeze option, 4 freezer bins, Ice boost function, Ice-making rate of 2.2 lbs per day, LED bin, ceiling, and side lighting.

• Create your dream kitchen rebate offer

Receive up to a $2,750 rebate when you purchase qualifying appliances from a participating retailer in a single transaction between July 1, 2023 and December 31, 2023. Claim by February 29, 2024. Rebate paid by Visa® Prepaid Card.

• THREE LEVELS OF FRESHNESS

When it comes to optimal food preservation, one temperature does not fit all. Three independent food zones give you full control over the way you care for food. The Freezer zone has adjustable temperature from -6 to 7(degree)F, while the top two compartments can be converted into a Chill (29 to 32(degree)F), Soft-Freeze (14 to 18(degree)F) or Freezer zone (-6 to 7(degree)F), to best suit different types of food. Adjust temperature for everyday convenience, or to provide additional chilling capacity for special occasions.

• PERFECT FIT

These models fit flush, with only 3/16pathum gaps around them and no visible hinges or grilles. Our Integrated models can be seamlessly hidden behind your cabinetry, or you can purchase our stainless steel door panel.

• MIX & MATCH

These modular refrigerators and freezers can be mixed and matched, with different sizes and finishes. Installed side by side or individually throughout the kitchen, you can create a cooling solution to suit your lifestyle. Customize with your own kitchen cabinetry and handles, or purchase our stainless steel door panel and handle options.

• CHILL MODE

Keep ready-to-eat food fresher for longer with Chill mode (29 to 32(degree)F). Chill mode is a perfect solution for everyday life. It keeps meats, poultry and fish as cool as possible without freezing, retaining vital freshness and helps food retain its condition. It's also great for entertaining. Set one of the top two compartments to Chill mode to quickly bring beverages down to serving temperature.

• CLEVER ENERGY

ActiveSmart™ Foodcare learns how you live. It is technology that understands how you use your freezer and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.

• SIMPLE INSTALLATION

Our Integrated products are easy to install, whether you are renovating your kitchen or designing a new one. Adjustable front and rear feet allow for uneven floors alongside adjustable door panels that can be customized to match your kitchen. These models are designed to easily slide into place as separate units - a perfect fit for European design kitchens.

• EASE OF USE

Using the intuitive touch-sensitive control panel, you can easily adjust the temperature to suit. Beautiful to use, the freezer door is family safe with a soft-close mechanism.

Pair with the Integrated Triple Zone Refrigerator for the ultimate kitchen solution - this model features three independent food zones taking cooling flexibility to a new level.
Finish Panel Ready Hinge Left hinge

Accessories
Accessories (sold separately)
Door panel stainless steel	RD2474 (right & left hinge)
Handle kit Contemporary square fine, aluminium	AHD5RDSF
Handle kit Contemporary square fine, black	AHD5RDSFB
Handle kit Professional round flush	25921
Joiner kit	AJRS74LR
Toe kick stainless steel 23"	AKRS2304
Toe kick stainless steel 47"	AKRS4704
Toe kick stainless steel 71"	AKRS7104
Water filter replacement	847200 - FWC3
Capacity
Total gross capacity	10.7cu ft
Volume freezer	10.7cu ft
Consumption
Energy usage	379kWh/year
Features
Adjustable door shelves	2
Freezer Features
Freezer bins	4
Ice making rate per day	2.2lbs
Installation Dimensions
Minimum inside width of cabinetry frame	23 5 / 8 "
Minimum internal depth of cabinetry	24 "
Minimum internal height of cabinetry	74 "
Performance
Variable food modes	Chill
Variable temperature zones	3
Power requirements
Rated current	10A
Supply frequency	60Hz
Supply voltage	115V

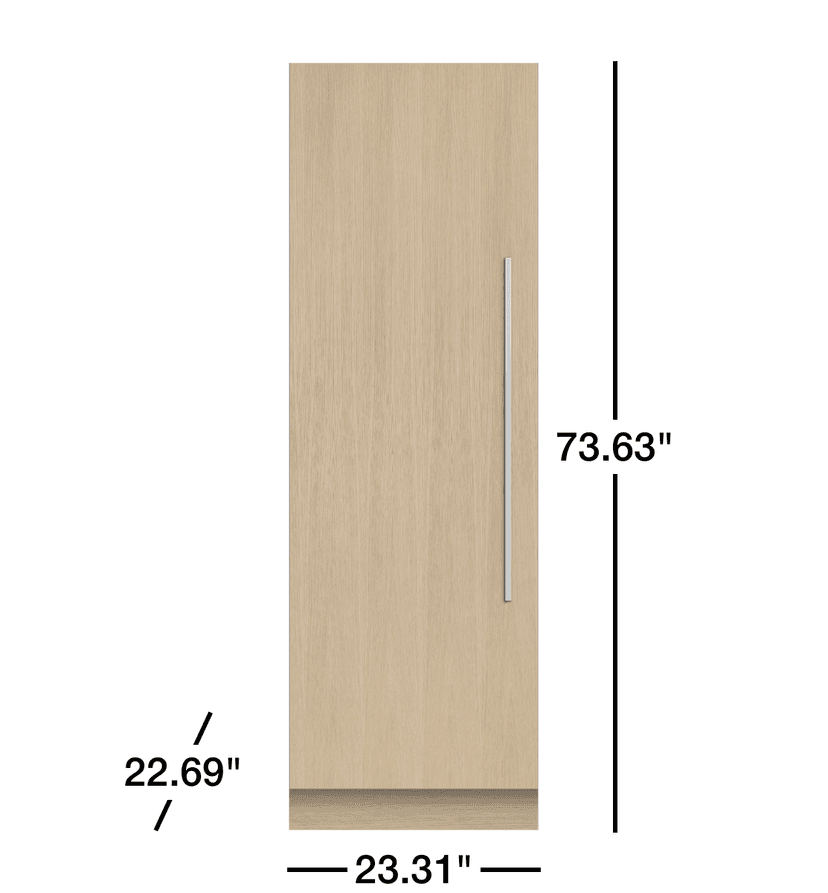

Product dimensions
Depth	22 11 / 16 "
Height	73 5 / 8 "
Width	23 5 / 16 "
Warranty
Parts and labor	2 years
Sealed system parts only	5 years
