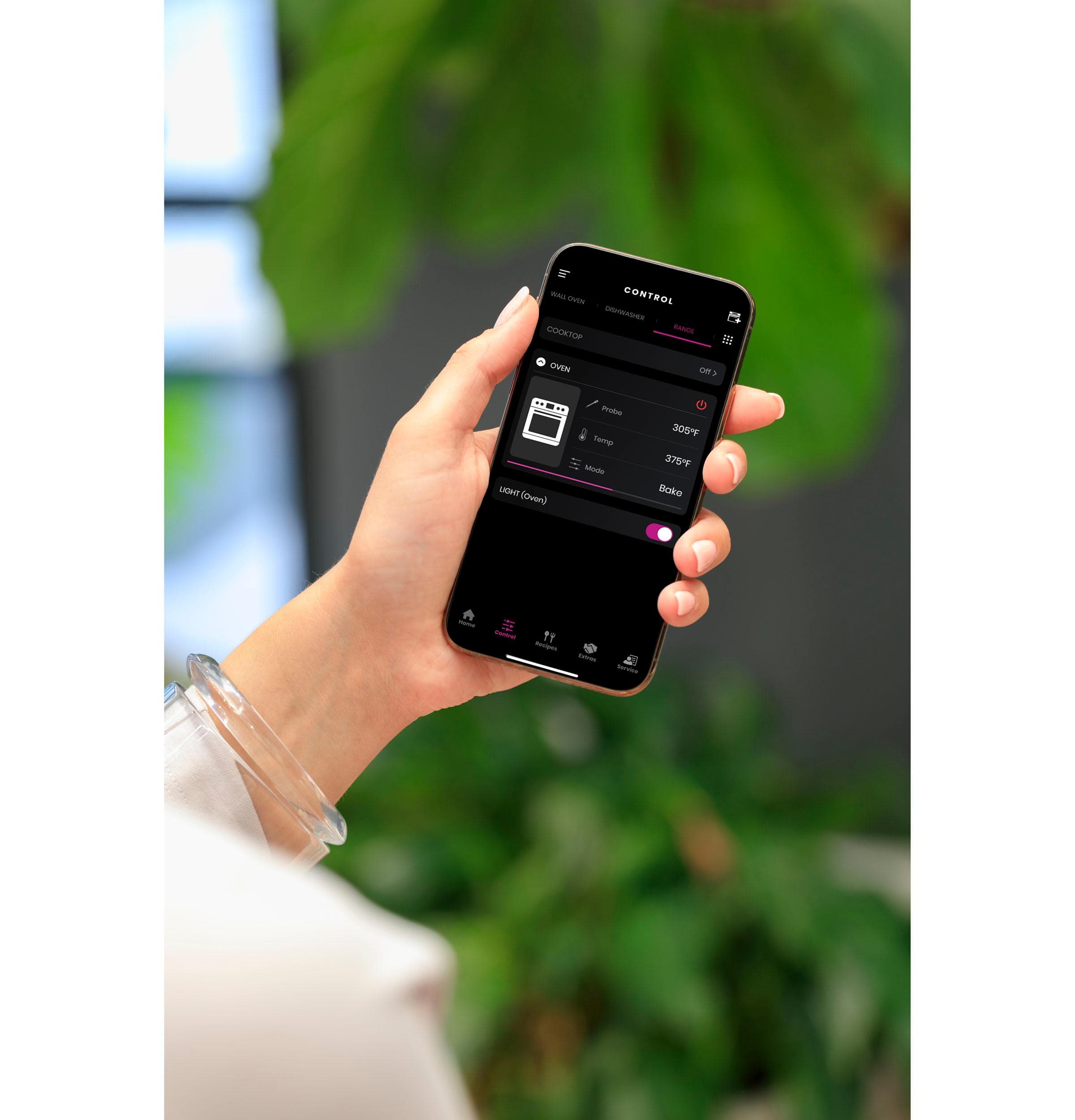

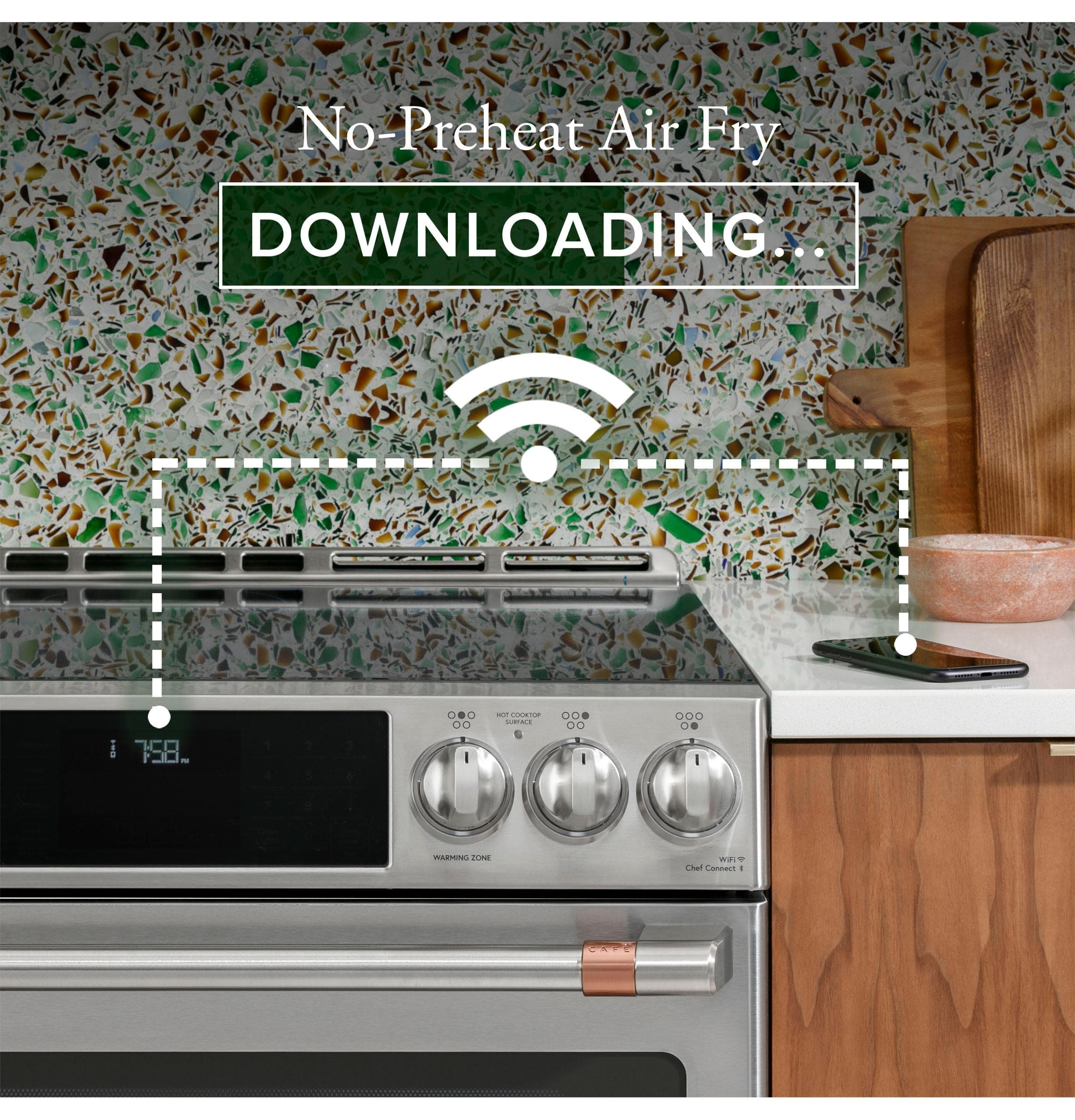

WiFi Connect |
Built-In |
Grill |
Optional JXCGRILL1 Integrated Cast Iron |
Sabbath Mode |
Yes |
Cooktop Burner Type |
Sealed |
Fuel Type |
Natural Gas (factory set) |

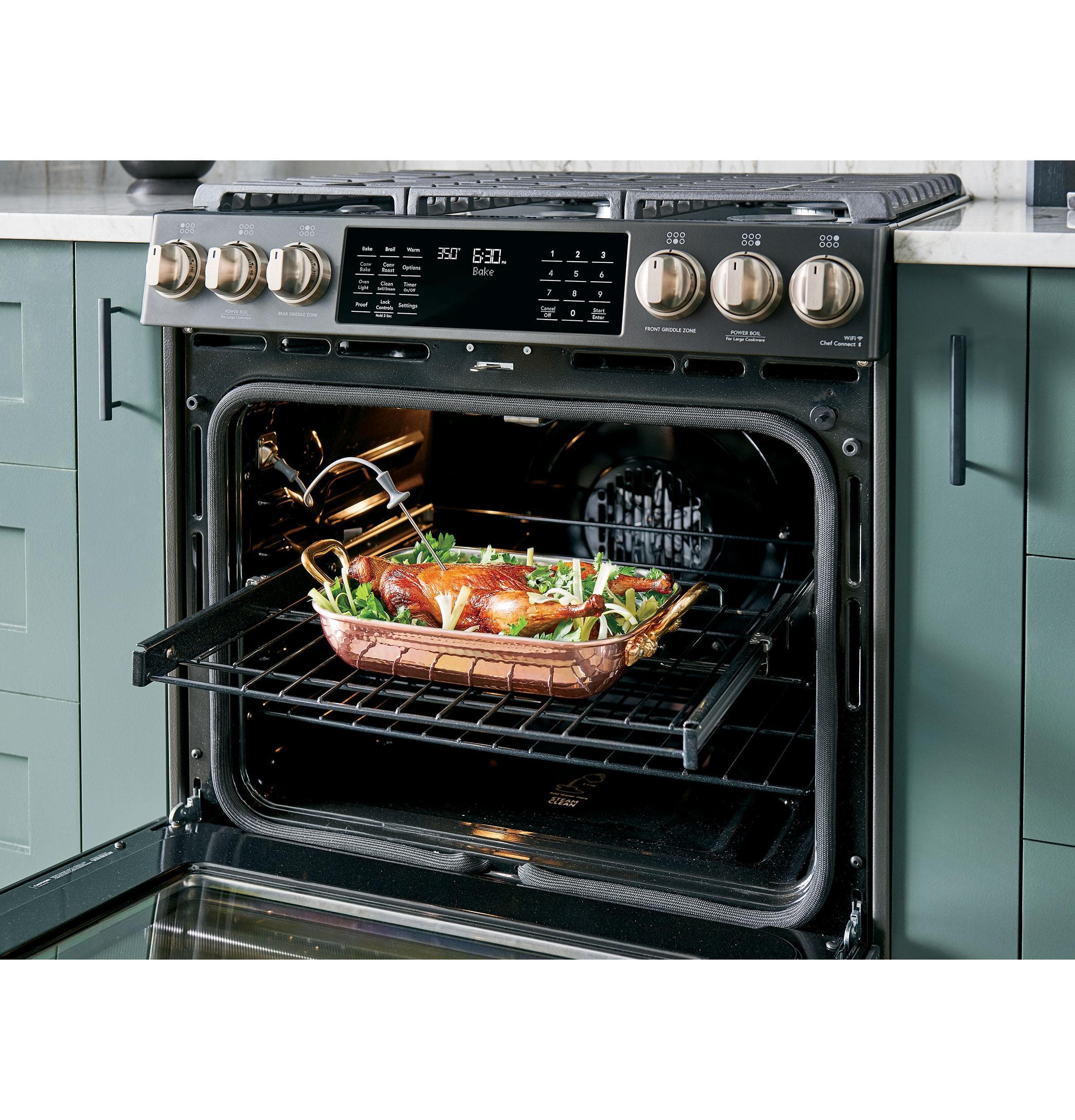

Cooking Technology |
Convection |
Connected Capabilities |
The Google Assistant Sonos Innit IFTTT Drop DiGiorno Amazon Alexa |

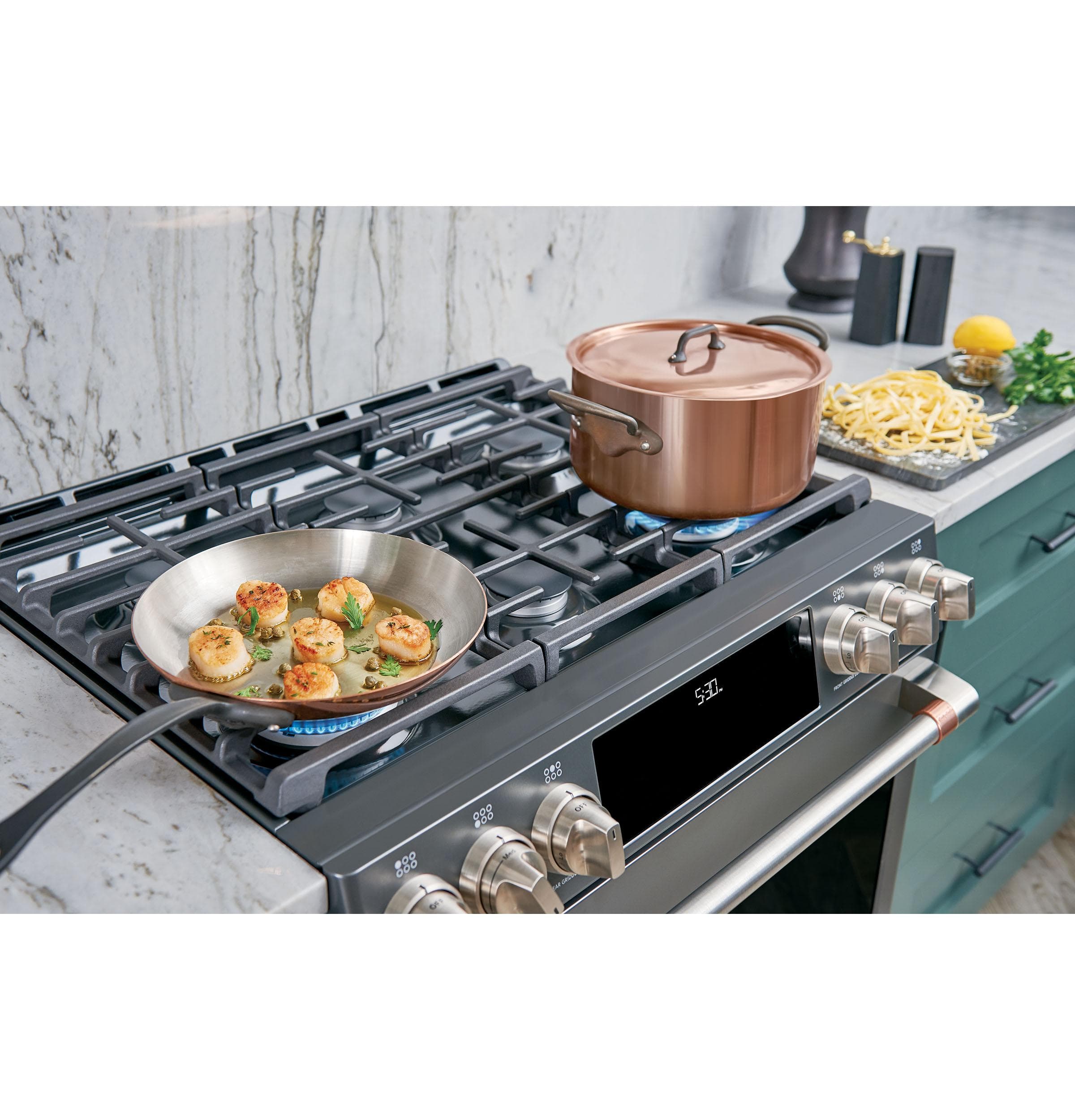

Cooktop Burner Grate Features |
Heavy-Cast Edge-to-Edge Grates |
Configuration |
Range with Storage Drawer |

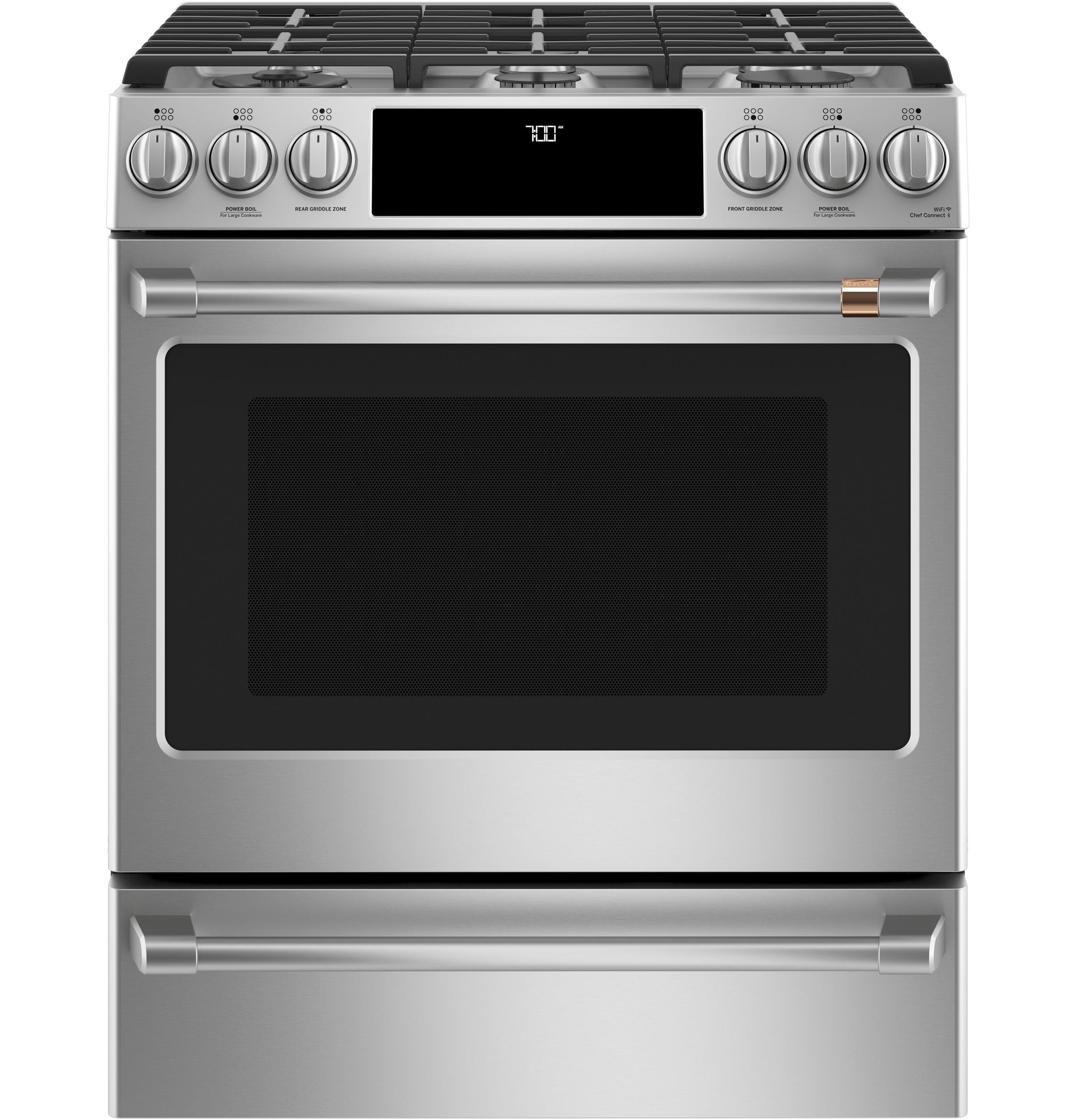

Product Type |
Slide-In Single Oven |
Burner - Right Rear |
12,000 BTU |
Oven Cleaning Type |
Self-Clean with Steam Clean Option |
Cooktop Burner Grate Material |
Cast-Iron |
Valves (Degree of Turn) |
270 |
Cooking System |
True Convection |
Burner - Left Front |
21,000 BTU Tri-ring Burner |
Burner - Right Front |
15,000 BTU |
Dishwasher Safe Knobs |
Yes |
Self-Clean Oven Door Lock |
Automatic |
Cooktop Type |
Standard Grates |

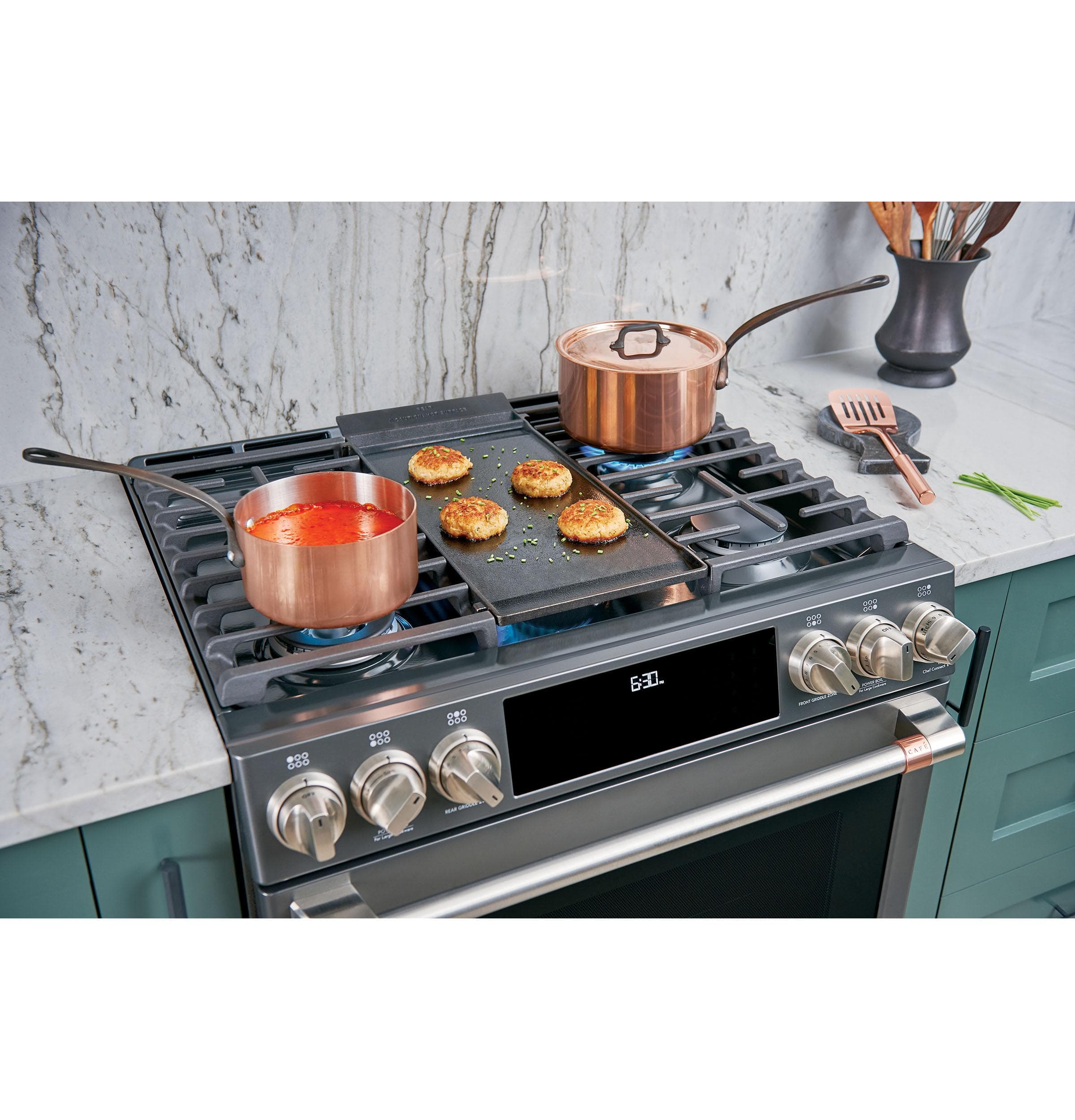

Griddle |
Integrated Cast Iron Included |
Style |
Commercial |
Ignition System |
Electronic |
Oven Control Features |
Temperature Probe Self-Clean Cool Down Time Display In-Oven Broiling Front Controls Electronic Clock and Timer Digipad Numeric Entry Delay Clean Option Delay Bake Option (Time Bake) Control Lock Capability Chef Connect Certified Sabbath Mode Automatic Oven Timer (Time Bake) Auto Self Clean Auto Oven Shut-Off Audible Preheat Signal |
Cleaning Time |
Variable with Delay Clean Option |

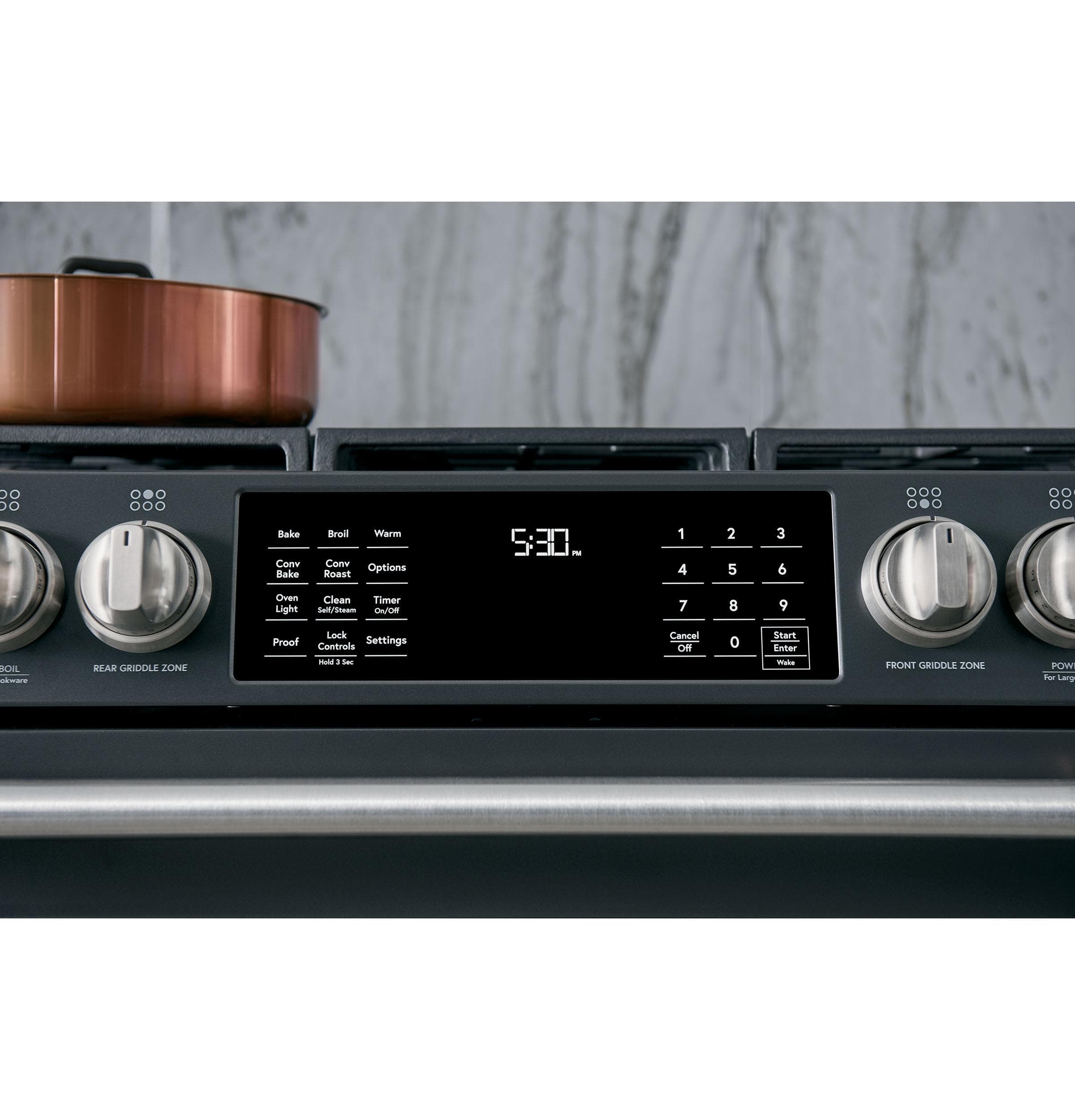

Control Type |
Glass Touch Backlit |
Cooktop Surface |
Stainless Steel Deep Recessed |
Burner - Center |
9,500 BTU Front / 9,500 BTU Rear |
Leveling System |
4 Leveling Legs |

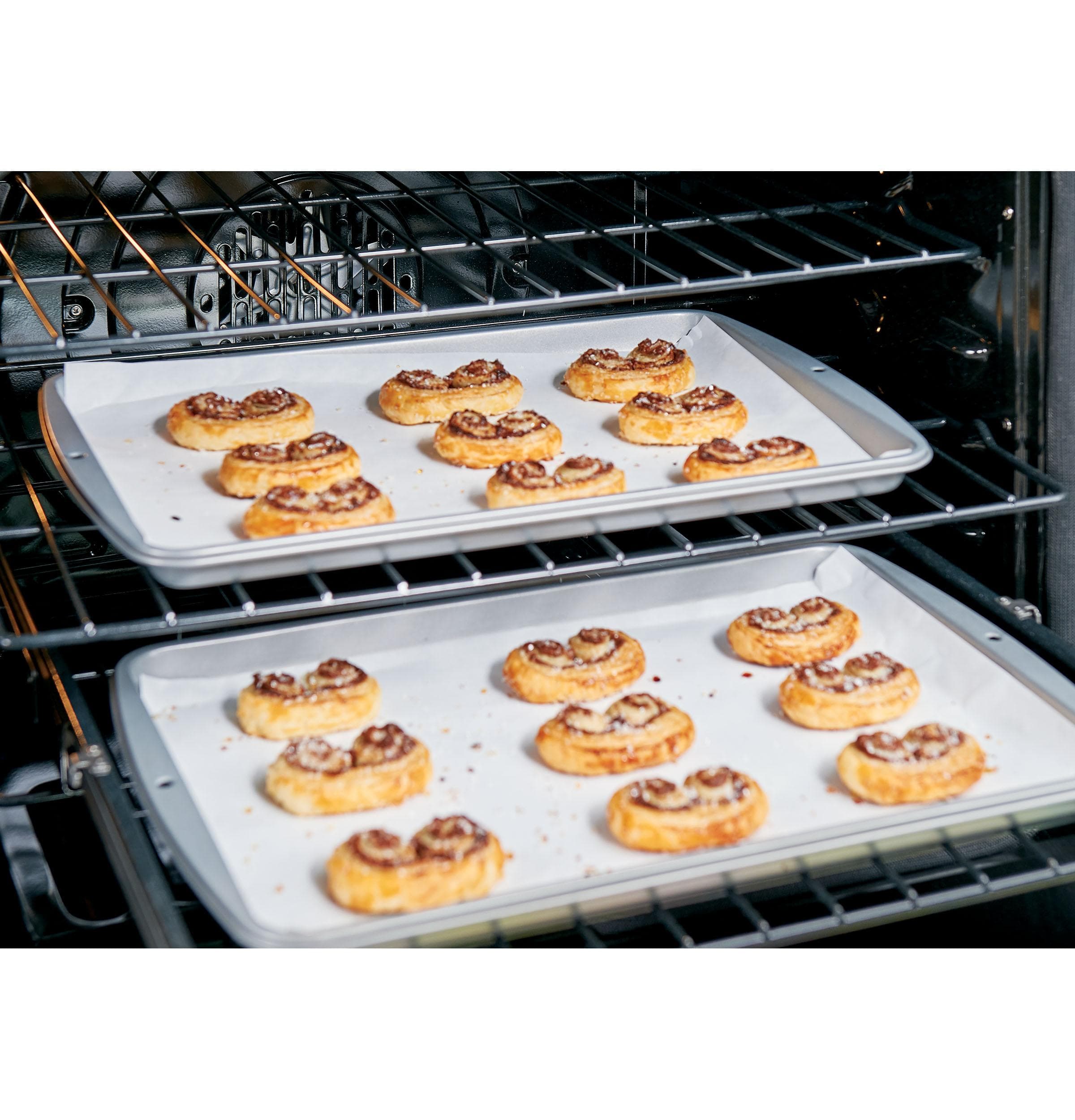

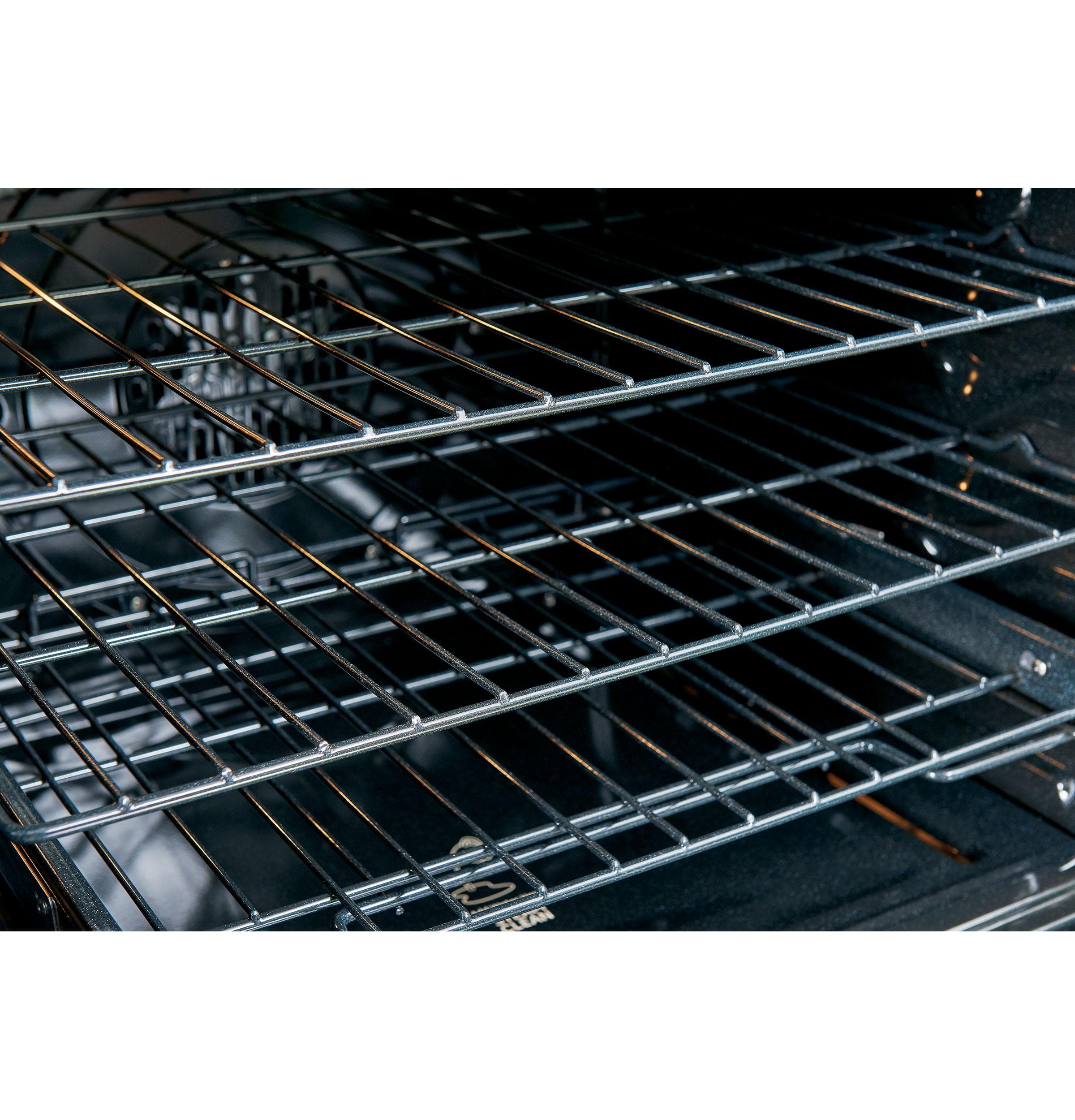

Oven Rack Features |
6 Rack Positions 3 Self-Clean Oven Racks |
Control Location |
Front controls |
Burner - Left Rear |
5,000 BTU Precise Simmer |
Oven Cooking Modes |
Warming Proof Frozen Snacks Single Rack (No Preheat) Frozen Snacks Multi Rack Frozen Pizza Single Rack (No Preheat) Frozen Pizza Multi Rack Convection Roast Convection Bake Baked Goods |
Oven Interior |
Black 1 Oven Interior Light |
Drawer Type |
Storage |
Trim Kit |
Optional JXFILLR1SS |
Optional Kits |
CXFCGHKPMCU Brushed Copper CXFCGHKPMBZ Brushed Bronze CXFCGHKPMBT Brushed Black |
LP Conversion Kit |
Included |
Grates |
Included Center Grate |
Textured Steel Side Panels |
Yes |
Control Knobs |
Weighted Stainless Steel Appearance |
Handle Design |
Café |
Handle |
Professional Style Customizable Consumer Removable |

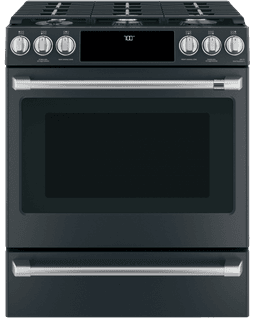

Cooktop Burner Grate Color |
Matte Black |
Oven Door Features |
Stainless Steel Frameless Oven Door Big Clear View Oven Window |
Handle Color |
Brushed Stainless |
Installation |
Free-standing cut-out Flush Appearance |
Color Appearance |
Stainless Steel |
Total Capacity (cubic feet) |
5.6 cu ft |
Volts/Hertz/Amps |
120v; 60Hz; 15A |
Top Burner BTU Rating - LP (000's BTU's) |
(1) 18.0 Tri-Ring; (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0; |
Bake/Broiler BTU Rating - LP (000's BTU's) |
16.0 Bake / 13.5 Broiler |
Convection Wattage |
1200W |
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) |
16.0 Bake / 16.5 Broiler |
Top Burner BTU Rating - Nat. Gas (000's BTU's) |
(1) 21.0 Tri-Ring; (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0 |
Warranty Notes |
See written warranty for full details |
Parts Warranty |
Limited 1-year entire appliance |
Labor Warranty |
Limited 1-year entire appliance |

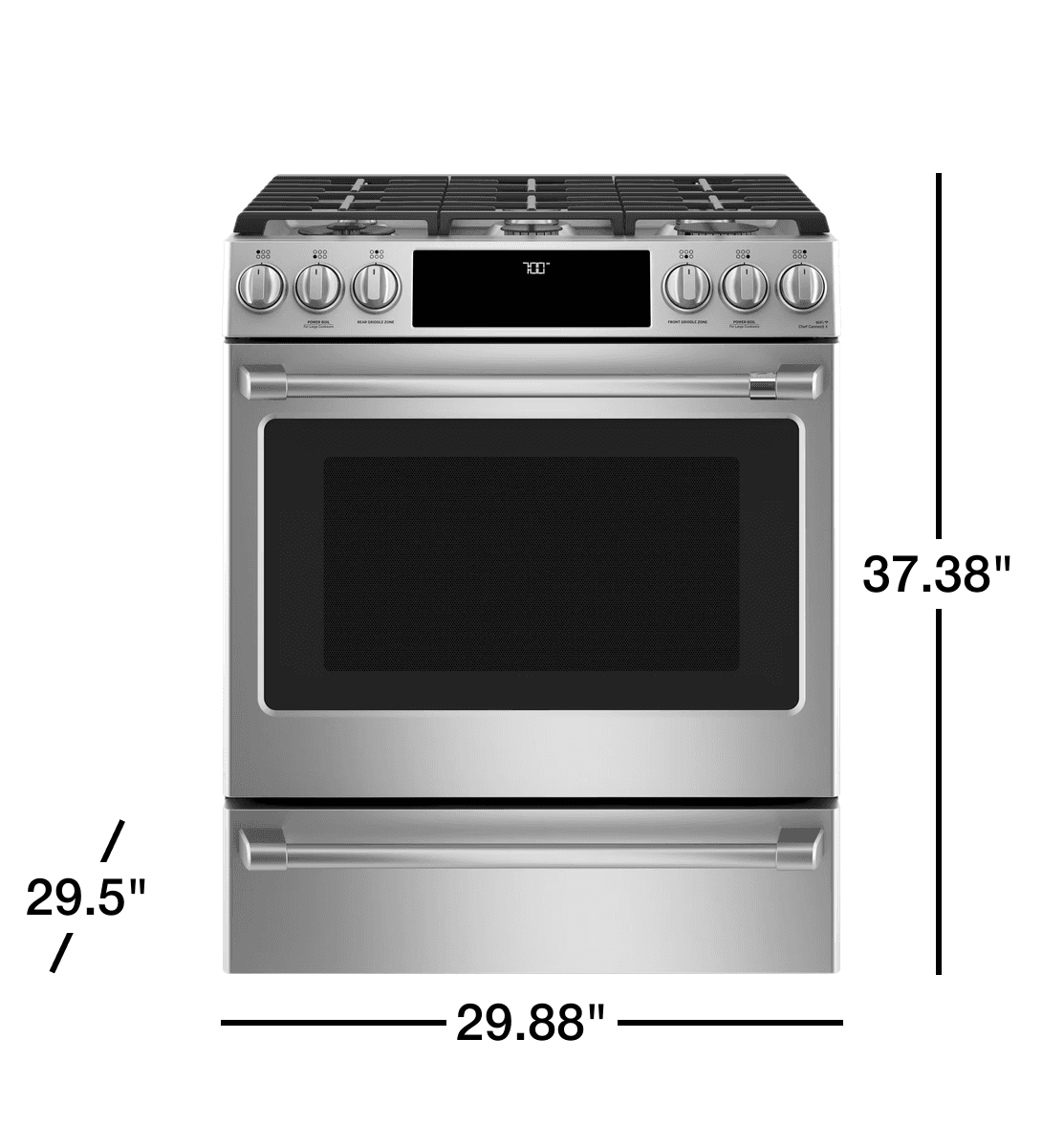

Cabinet Width |
30.0 in |
Overall Height |
37.375 in |
Height to Top of Rear Vent Trim |
37.375 in |
Height to Cooking Surface (in.) |
36 1/4 +/- 1/4 |
Net Weight |
224.0 lb |
Overall Width |
29.875 in |
Depth Without Handle |
26.875 in |
Overall Depth |
29.5 in |
Oven Interior Dimensions (W x H x D) (in.) |
24 x 19-1/2 x 20-5/8 |
Depth with Door Open |
47.5 in |
